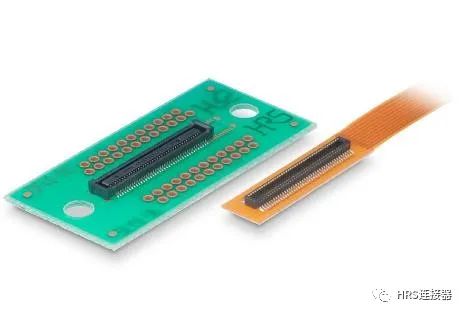

DF40T series

The characteristics of
1. 125℃ heat resistant and corresponding to vehicle specifications
2. 0.4mm spacing and 3.38mm depth
Small board to FPC socket
3. Rich core number and high selection
4. Corresponding to PCI Express 4.0(16Gbps) transmission
5. Suitable for high heat resistant terminal design and material

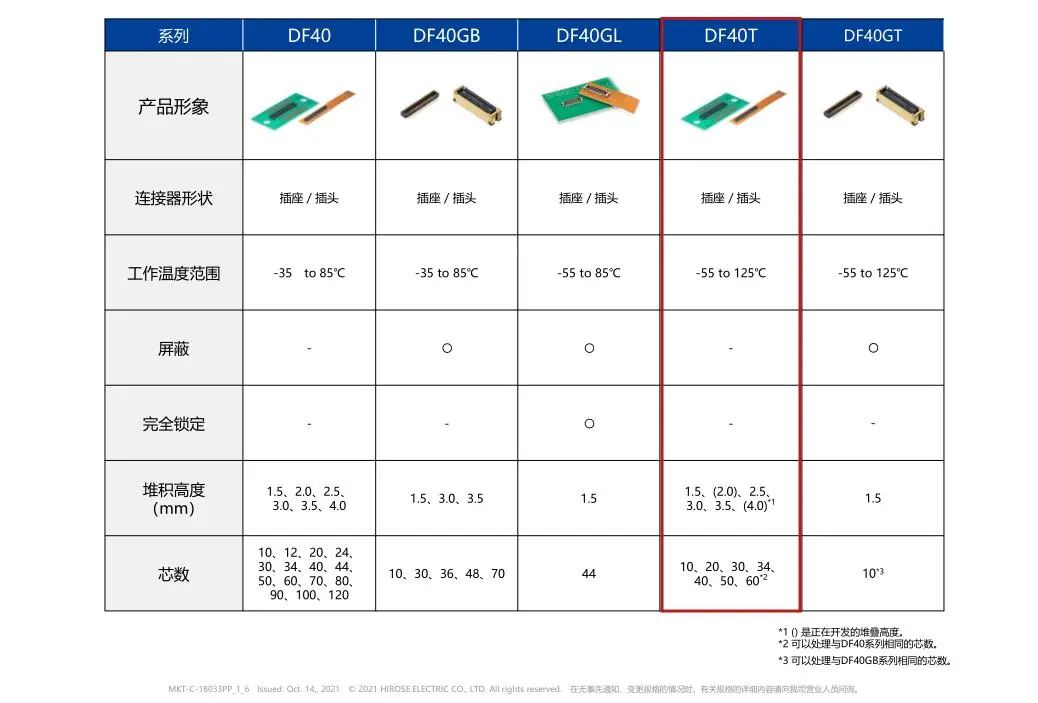

01  DF40 series selection

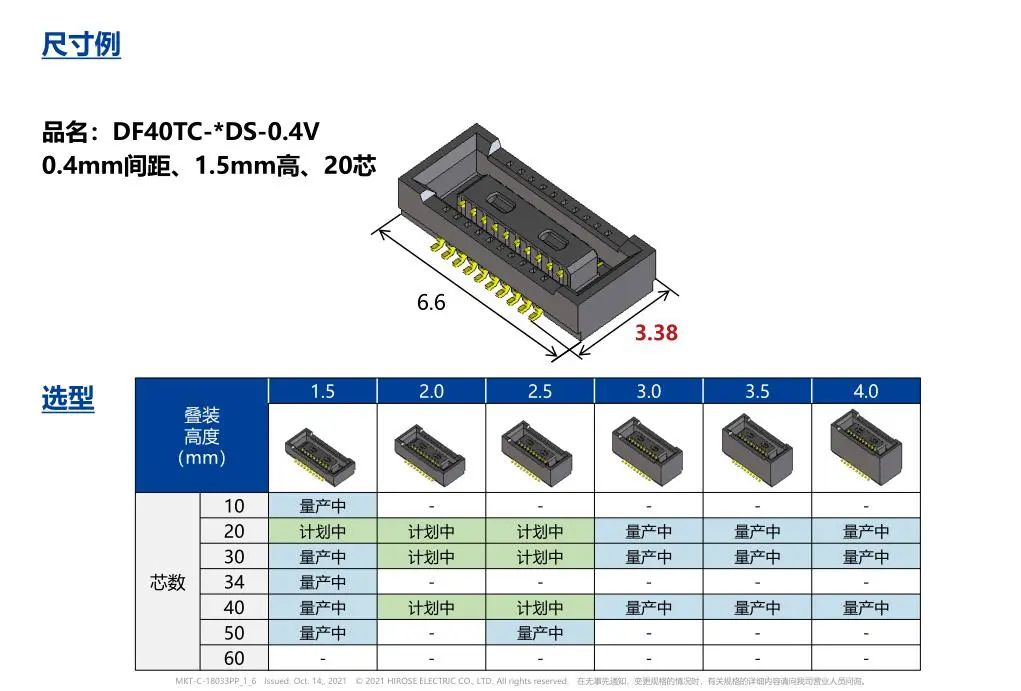

02  Size & Type selection

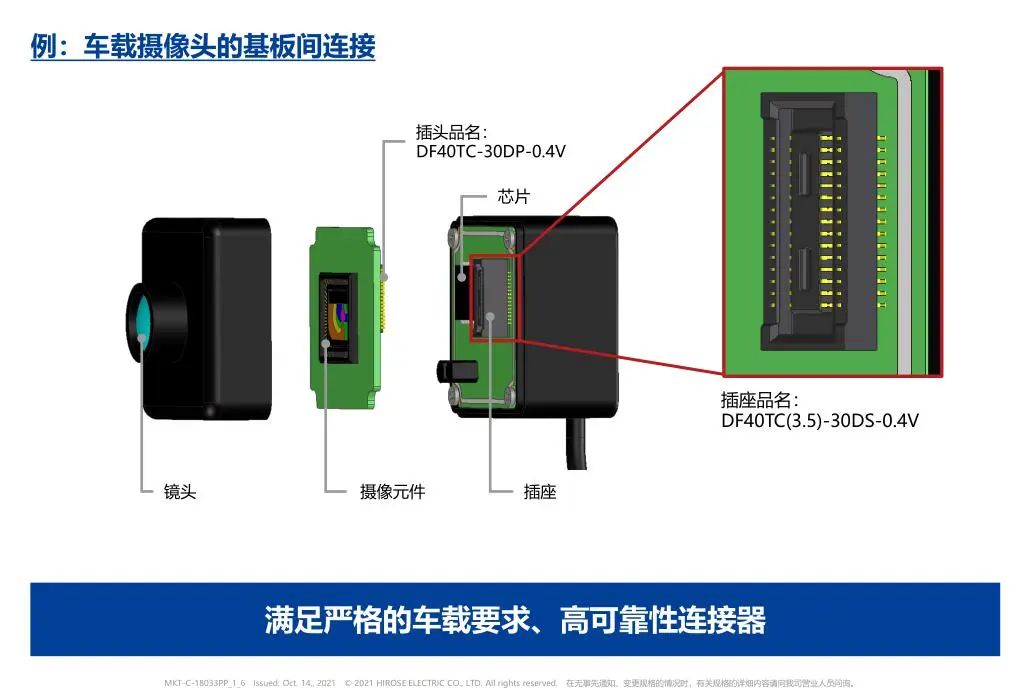

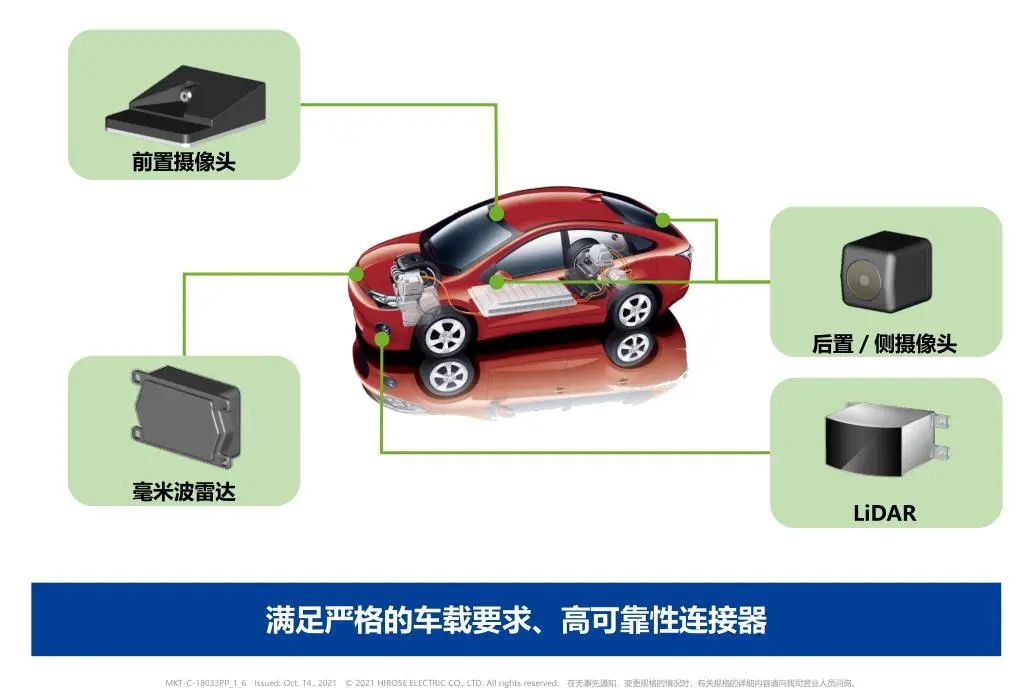

03 Vehicle application usage examples

04 Connection diagram

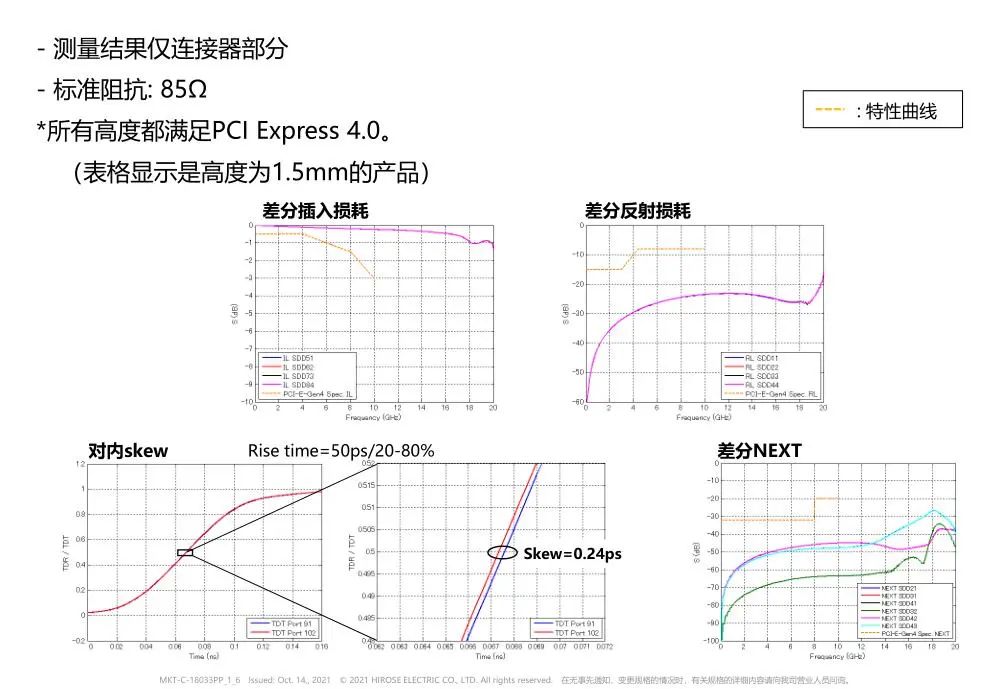

05 Support PCI Express 4.0 (16Gbps) transmission

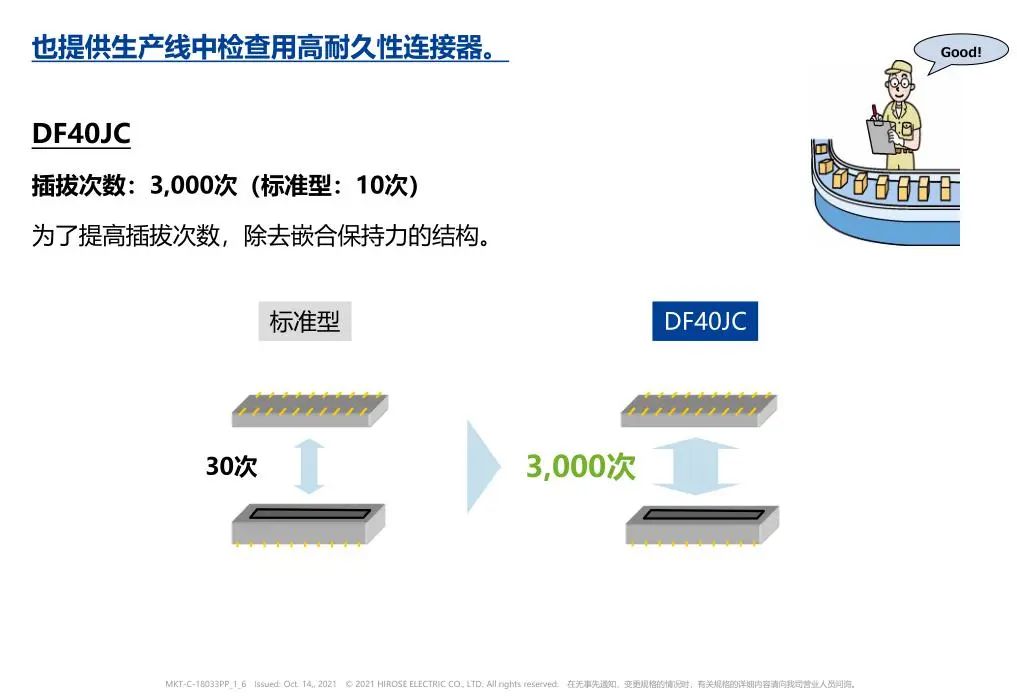

06 Inspection connector

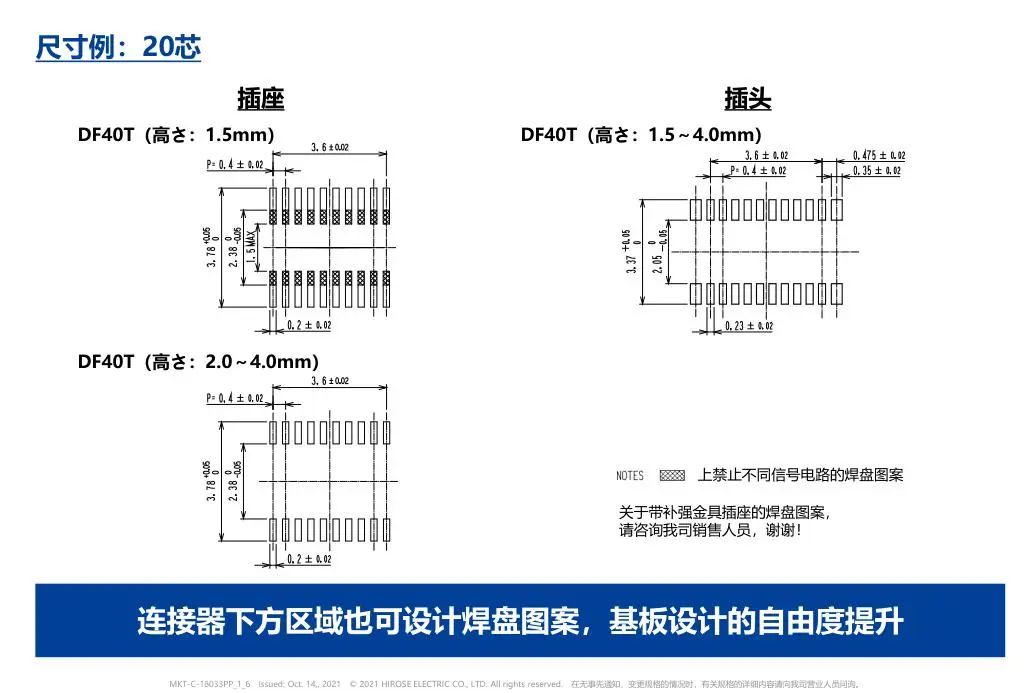

07  The substrate pattern is recommended

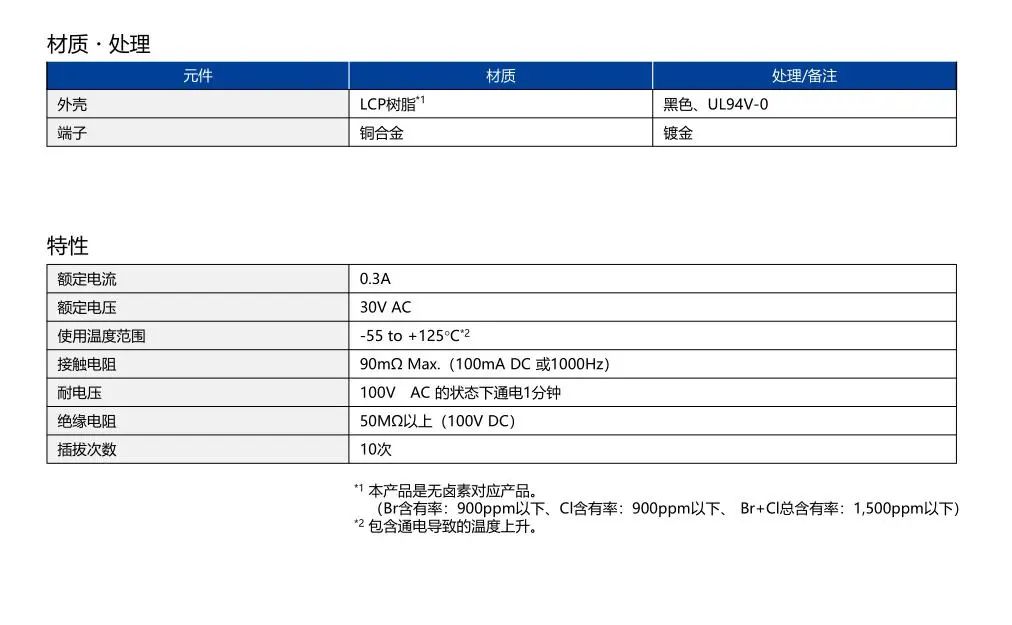

08  Specifications
